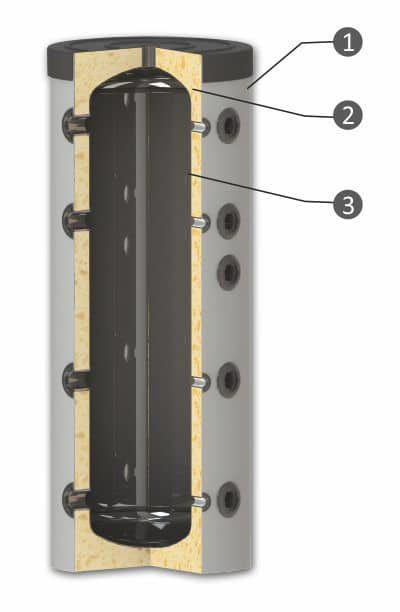

БУФЕР 300 ЛИТ. "S-S" P

Производител: SUNSYSTEM

		PS 150	PS 200	PS 300	PS 500
Capacity	L	150	200	300	500
Height	H, mm	1310	1710	1720	1715
Mounting height	mm	1400	1780	1821	1878
Diameter without insulation /with insulation	D, mm	Ø 400/500	Ø 400/500	Ø 500/610	Ø 650/765
Operating pressure/Max. buffer temperature	bar/0C	3/95	3/95	3/95	3/95
Recommended boiler size, connected to buffer tank	kW	6-10	6-10	6-10	10-17
Weight	kg	38	47	64	96
Sleeve for Electric heating element	В, mm, Rp11/2”	755	995	1005	1020
Heat carrier	С1, mm	Rp11/2”/185	Rp11/2”/185	Rp2”/225	Rp2”/249
Heat carrier	С2, mm	Rp11/2”/185	Rp11/2”/185	Rp2”/225	Rp2”/249
Heat carrier	С3, mm	Rp11/2”/485	Rp11/2”/725	Rp2”/700	Rp2”/789
Heat carrier	С4, mm	Rp11/2”/485	Rp11/2”/725	Rp2”/700	Rp2”/789
Heat carrier	С5, mm	Rp11/2”/885	Rp11/2”/1165	Rp2”/1168	Rp2”/1229
Heat carrier	С6, mm	Rp11/2”/885	Rp11/2”/1165	Rp2”/1168	Rp2”/1229
Heat carrier	С7, mm	Rp11/2”/1125	Rp11/2”/1525	Rp2”/1493	Rp2”/1464
Heat carrier	С8, mm	Rp11/2”/1125	Rp11/2”/1525	Rp2”/1493	Rp2”/1464
Sensor sleeve	А1, mm, Rp1/2”	185	185	225	249
Sensor sleeve	А2, mm, Rp1/2”	485	725	700	789
Sensor sleeve	А3, mm, Rp1/2”	885	1165	1168	1229
Sensor sleeve	А4, mm, Rp1/2”	1125	1525	1493	1464
Air vent	F, mm, Rp11/2”	1310	1710	1720	1715

SKU: 062308-504

Повик за цени
