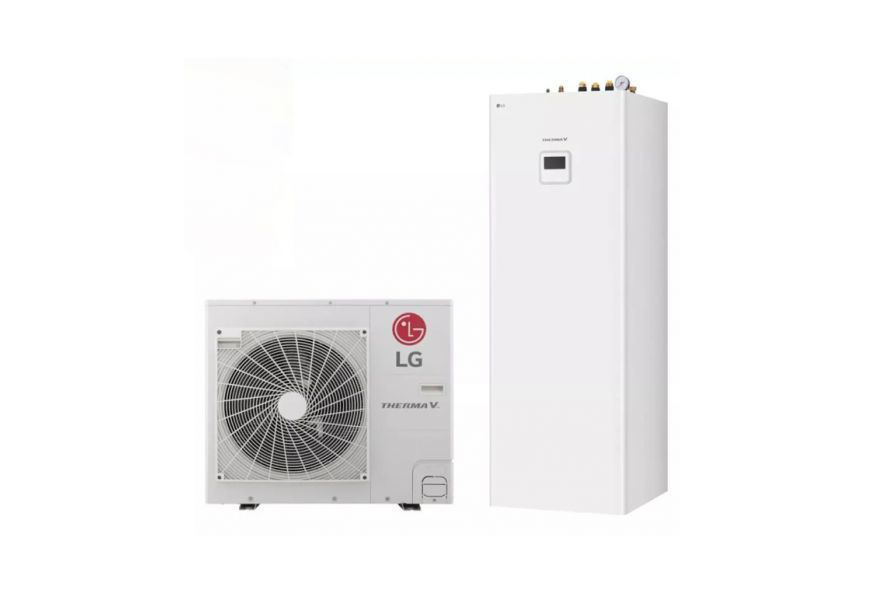

LG THERMA V Split Integrated Water Tank HU091MR.U44 / HN0913T.NK0

Производител: LG

Бидете првиот што ќе го прегледа овој производ

Моќност

Повик за цени

Преглед
Прегледи
Контактирај не

Technical Specification		OAT	LWT	Indoor Unit	HN0913T NK0
Technical Specification		OAT	LWT	Outdoor Unit	HU091MR U44
Nominal Capacity	Heating	7°C	35°C	kW	9.00
		7°C	55°C		5.50
	Cooling	2°C	35°C		5.40
		35°C	18°C		9.00
		35°C	7°C		9.00
Nominal Power Input	Heating	7°C	35°C	kW	1.94
		7°C	55°C		2.4
	Cooling	2°C	35°C		1.54
		35°C	18°C		2.14
		35°C	7°C		3.46
COP	Heating	7°C	35°C	W/W	4.65
		7°C	55°C		2.70
		2°C	35°C		3.50
EER	Cooling	35°C	18°C	W/W	4.20
EER	Cooling	35°C	7°C	W/W	2.60
Operation Range (Outdoor Temp.)	Heating	Min. ~ Max.	Min. ~ Max.	°C DB	-25 ~ 35
Operation Range (Outdoor Temp.)	Cooling	Min. ~ Max.	Min. ~ Max.	°C DB	5 ~ 48
Compressor	Type			-	Hermetic Sealed Scroll
Refrigerant	Type			-	R32
	GWP (Global Warming Potential)			-	675
	Precharged Amount			q	1,5
	t-CO2 eq			-	1.013
Piping Connections	Outer Diameter	Liquid		mm (inch)	Ø 9.52 (3/8)
		Gas		mm (inch)	Ø 15.88 (5/8)
	Length
		Standard		m	5
	Level Difference	Max.		m	50
	Chargeless-Pipe Length	Max.		m	30
	Additional Charging Volume	-		m	10
		-		g/m	40
Rated Water Flow Rate (at LWT 35°C)				ℓ/min	25.9
Sound Power Level	Heating		Rated	dB(A)	60
Sound Pressure Level (at 1m)	Heating		Rated	dB(A)	52
Dimensions	Unit		W x H x D	mm	950 × 834 × 330
Weight	Unit			kg	60.0
Exterior	Color / RAL Code			-	Warm Gray / RAL 7044
Electrical Specification				Outdoor Unit	HU091MR U44
Power Supply	Voltage, Phase, Frequency		-	V, Ø, Hz	220-240, 1, 50
	Rated Running Current		Cooling	A	8.6
			Heating	A	9.5
Wiring Connections	Power Supply Cable (included earth, H07RN-F)			mm² x cores	4.0 x 3C
Technical Specification				Indoor Unit	HN0913T NK0
Operation Range	Heating	Min. ~ Max.		°C	15 ~ 65
(Leaving Water Temp.)
	Cooling	Min. ~ Max.			5 ~ 27 (16 ~ 27) 1)
	Domestic Hot Water	Min. ~ Max.			15 ~ 80 2)
Domestic Hot Water Tank	Volume			ℓ	200
	Material			-	Duplex Stainless Steel
	Internal Thermal Protect Limit			°C	85
Main Water Pump	Model			-	Grundfos UPM3K 20-75 CHBL
Flow Sensor	Measuring Range	Min. ~ Max.		ℓ/min	5 ~ 80
Water Pressure Sensor	Measuring Range	Min. ~ Max.		bar (G)	0 ~ 20
Expansion Vessel (Heating Circuit)	Volume			ℓ	8
Safety Valve	Heating Circuit	Upper Limit		bar	3
Safety Valve	DHW Circuit	Upper Limit		bar	10
Piping Connections	Refrigerant Circuit	Liquid (outside diameter)		mm (Inch)	Ø 9.52 (3/8)
		Gas (outside diameter)		mm (Inch)	Ø 15.88 (5/8)
	Water Circuit
		Inlet		Inch	Female G1" according to ISO228-1 (parallel pipe threads)
		Outlet		Inch	Female G1" according to ISO228-1 (parallel pipe threads)
	DHW Tank Water Circuit
		Cold Inlet		Inch	Female G1" according to ISO228-1 (parallel pipe threads)
		Hot Outlet		Inch	Female G1" according to ISO228-1 (parallel pipe threads)
		Recirculation		Inch	Female G1" according to ISO228-1 (parallel pipe threads)
Sound Power Level	Heating	Rated		dB(A)	42
Dimensions	Unit	W × H × D		mm	600 × 1,750 × 660
Weight (without water)	Unit			kg	118
Exterior	Color / RAL Code			-	White / RAL 9016
Electrical Specification				Indoor Unit	HN0913T NK0
Wiring Connections	Power and Communication Cable (Included Earth, H07RN-F)			mm² x cores	0.75 x 4C
Electric Heater	Type			-	Sheath
	No. of Heating Coil			EA	2
	Capacity Combination			kW	3
	Heating Step			Step	1
	Power Supply			V, Ø, Hz	220-240, 1, 50
	Wiring Connections Power Supply Cable (Included Earth, H07RN-F)			mm² x cores	1.5 x 3C
	Rated Current			A	13.0

Catalogue

PDB R32 Heat pump
