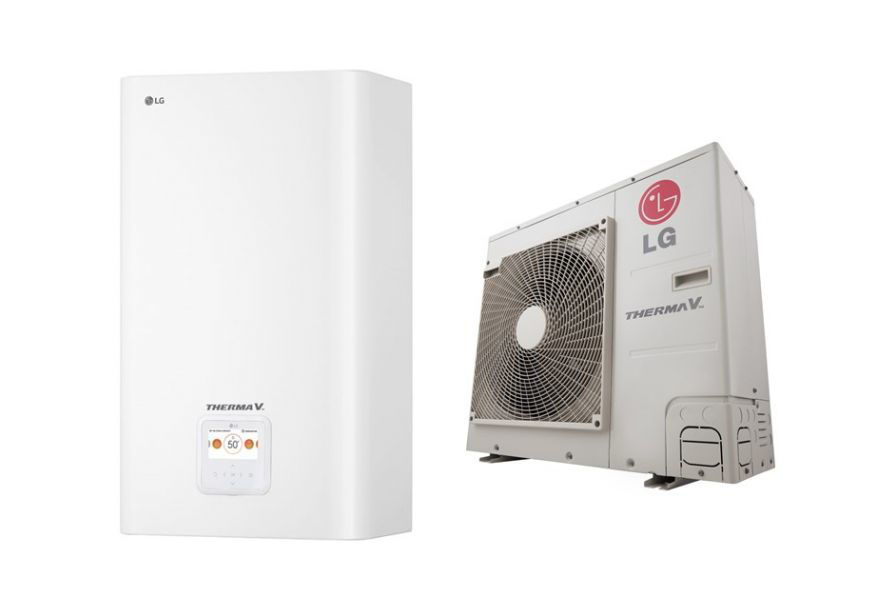

    LG THERMA V Split HU091MR.U44 / HN091MR.NK5

    Производител: LG

    Повик за цени
    Nominal Capacity and Nominal InputHU091MR U44
    ConditionOutdoor Temp.Leaving Water Temp. (°С)-
    (°С) DB / WB
    CapacityCooling35 / 2418kW9
    35 / 247kW9
    Heating7.635kW9
    EERCooling35 / 2418W/W4,2
    35 / 247W/W2,6
    COPHeating7.635W/W4,65

    Electrical SpecificationsHU091MR U44
    Power SupplyV, Ø, Hz220-240, 1, 50
    Maximum Running CurrentCoolingA23
    HeatingA23
    Peak Control Running CurrentCoolingA15
    HeatingA15
    Rated Running CurrentCoolingA9,5
    HeatingA8,6
    Circuit breakerA25
    Wiring ConnectionsPower Supply Cable (included Earth)No × mm23 × 4.0 (H07RN-F)

    Technical SpecificationsHU091MR U44
    Sound Power LevelHeatingRateddB(A)60
    Low noisedB(A)58
    Sound Pressure Level (at 1m)HeatingRateddB(A)50
    DimensionsUnitW × H × Dmm950 × 834 × 330
    Packed UnitW × H × Dmm1,065 × 618 × 461
    WeightUnitkg60
    Packed Unitkg65

    Outdoor UnitsHU091MR.U44
    Operation Range (Outdoor Temperature)CoolingMin. ~ Max.°C DB5 ~ 48
    HeatingMin. ~ Max.°C DB-25 ~ 35
    CompressorType-Hermetic Sealed Scroll
    ModelModel × No.RJB036MAA × 1
    Motor Type-BLDC
    Displacementcm3/Rev.31,6
    RefrigerantType-R32
    GWP (Global Warming Potential)-675
    Precharged Amountg1 500
    t-CO2 eq.-1,013
    Control-Electronic Expansion Valve
    Refrigerant OilType-FW68D
    Charged Volumecc × No.1 100
    Piping ConnectionsGasTypeFlare
    mm(Inch)Ф 15.88 (5/8)
    LiquidTypeFlare
    mm(Inch)Ф 9.52 (3/8)
    Piping LengthStandardm5
    Max.m50
    Piping Level DifferenceMax.m30
    Chargeless-Pipe Lengthm10
    Additional Charging Volumeg/m30
    Heat ExchangerQuantityEA1
    SpecificationRowEA2
    ColumnEA38
    FPIEA14
    FanType-Propeller
    Air Flow RateRatedm3/min × No.60.0 × 1
    Fan MotorType-BLDC
    OutputW × No.124 × 1

    Indoor UnitHN091MR.NK5
    Operation Range (Leaving Water Temperature)CoolingMin. ~ Max.°C DB5 ~ 27
    HeatingMin. ~ Max.°C DB15 ~ 65
    DHW *Min. ~ Max.°C DB15 ~ 80
    Water PumpType-Canned type for hot water circulation
    ModelGRUNDFOS UPM3K 20-75 CHBL
    Motor Type-BLDC
    Steps of Pump Performance-Variable capacity 10% to 100%
    Power inputMin. ~ Max.W3 ~ 60
    Heat ExchangerType-Brazed Plate HEX
    Quantity1
    Number of PlateEA54
    Water Volume˜0,7
    Flow SensorType-Vortex
    Model-SIKA VVX20
    Measuring RangeMin. ~ Max.˜/min5 ~ 80
    Flow (Trigger point)Min.˜/min7
    Expansion VesselVolumeMax.˜8
    Water pressureMax.bar3
    Water pressurePre-chargedbar1
    StrainerMesh size-28 mesh
    Material-Stainless Steel
    Relief valvePressure LimitUpper Limitbar3
    Piping ConnectionsWater CircuitInletmm(Inch)Male PT 25(1")
    Outletmm(Inch)Male PT 25(1")
    Refrigerant CircuitGasmm(Inch)Ф 15.88 (5/8)
    Liquidmm(Inch)Ф 9.52 (3/8)
    Wiring ConnectionsCommunication Cable (included Earth)No × mm24 × 0.75 (H07RN-F)
    Sound Power LevelHeatingRateddB(A)44
    DimensionsUnitW × H × Dmm490 × 850 × 315
    Packed UnitW × H × Dmm563 ×1082 × 375
    WeightUnitkg41
    Packed Unitkg47

    Catalogue

    PDB R32 Heat pump
