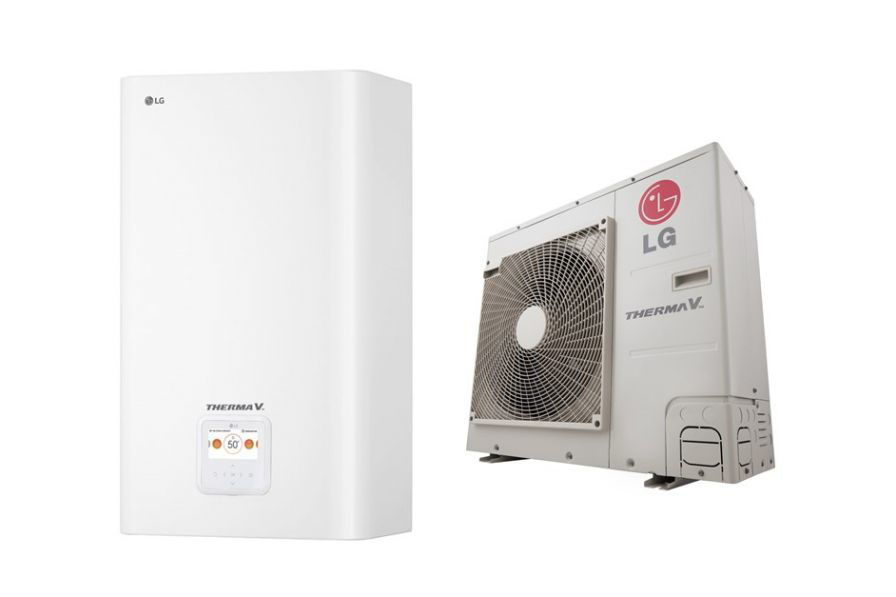

LG THERMA V Split HU071MR.U44 / HN091MR.NK5

Производител: LG

Повик за цени

Nominal Capacity and Nominal Input					HU071MR U44
Condition		Outdoor Temp (°С) DB / WB	Leaving Water Temp. (°С)	-
Capacity	Cooling	35 / 24	18	kW	7
	Cooling	35 / 24	7	kW	7
	Heating	7.6	35	kW	7
EER	Cooling	35 / 24	18	W/W	4,5
EER	Cooling	35 / 24	7	W/W	2,7
COP	Heating	7.6	35	W/W	4,9

Electrical Specifications			HU071MR U44
Power Supply		V, Ø, Hz	220-240, 1, 50
Maximum Running Current	Cooling	A	15,7
Maximum Running Current	Heating	A	15,7
Peak Control Running Current	Cooling	A	14
Peak Control Running Current	Heating	A	14
Rated Running Current	Cooling	A	6,9
Rated Running Current	Heating	A	6,3
Circuit breaker		A	20
Wiring Connections	Power Supply Cable (included Earth)	No × mm2	3 × 4.0 (H07RN-F)

Outdoor Units				HU071MR U44
Operation Range (Outdoor Temperature)	Cooling	Min. ~ Max.	°C DB	5 ~ 48
Operation Range (Outdoor Temperature)	Heating	Min. ~ Max.	°C DB	-25 ~ 35
Compressor	Type		-	Hermetic Sealed Scroll
	Model		Model × No.	RJB036MAA × 1
	Motor Type		-	BLDC
	Displacement		cm3/Rev.	31,6
Refrigerant	Type		-	R32
	GWP (Global Warming Potential)		-	675
	Precharged Amount		g	1 500
	t-CO2 eq.		-	1,013
	Control		-	Electronic Expansion Valve
Refrigerant Oil	Type		-	FW68D
Refrigerant Oil	Charged Volume		cc × No.	1 100
Piping Connections	Gas		Type	Flare
	Gas		mm(Inch)	Ф 15.88 (5/8)
	Liquid		Type	Flare
	Liquid		mm(Inch)	Ф 9.52 (3/8)
	Piping Length	Standard	m	5
	Piping Length	Max.	m	50
	Piping Level Difference	Max.	m	30
	Chargeless-Pipe Length		m	10
	Additional Charging Volume		g/m	30
Heat Exchanger	Quantity		EA	1
	Specification	Row	EA	2
		Column	EA	38
		FPI	EA	14
Fan	Type		-	Propeller
Fan	Air Flow Rate	Rated	m3/min × No.	60.0 × 1
Fan Motor	Type		-	BLDC
Fan Motor	Output		W × No.	124 × 1

Indoor Unit				HN091MR.NK5
Operation Range (Leaving Water Temperature)	Cooling	Min. ~ Max.	°C DB	5 ~ 27
	Heating	Min. ~ Max.	°C DB	15 ~ 65
	DHW *	Min. ~ Max.	°C DB	15 ~ 80
Water Pump	Type		-	Canned type for hot water circulation
	Model			GRUNDFOS UPM3K 20-75 CHBL
	Motor Type		-	BLDC
	Steps of Pump Performance		-	Variable capacity 10% to 100%
	Power input	Min. ~ Max.	W	3 ~ 60
Heat Exchanger	Type		-	Brazed Plate HEX
	Quantity			1
	Number of Plate		EA	54
	Water Volume		˜	0,7
Flow Sensor	Type		-	Vortex
	Model		-	SIKA VVX20
	Measuring Range	Min. ~ Max.	˜/min	5 ~ 80
	Flow (Trigger point)	Min.	˜/min	7
Expansion Vessel	Volume	Max.	˜	8
	Water pressure	Max.	bar	3
	Water pressure	Pre-charged	bar	1
Strainer	Mesh size		-	28 mesh
Strainer	Material		-	Stainless Steel
Relief valve	Pressure Limit	Upper Limit	bar	3
Piping Connections	Water Circuit	Inlet	mm(Inch)	Male PT 25(1")
	Water Circuit	Outlet	mm(Inch)	Male PT 25(1")
	Refrigerant Circuit	Gas	mm(Inch)	Ф 15.88 (5/8)
	Refrigerant Circuit	Liquid	mm(Inch)	Ф 9.52 (3/8)
Wiring Connections	Communication Cable (included Earth)		No × mm2	4 × 0.75 (H07RN-F)
Sound Power Level	Heating	Rated	dB(A)	44
Dimensions	Unit	W × H × D	mm	490 × 850 × 315
Dimensions	Packed Unit	W × H × D	mm	563 ×1082 × 375
Weight	Unit		kg	41
Weight	Packed Unit		kg	47
