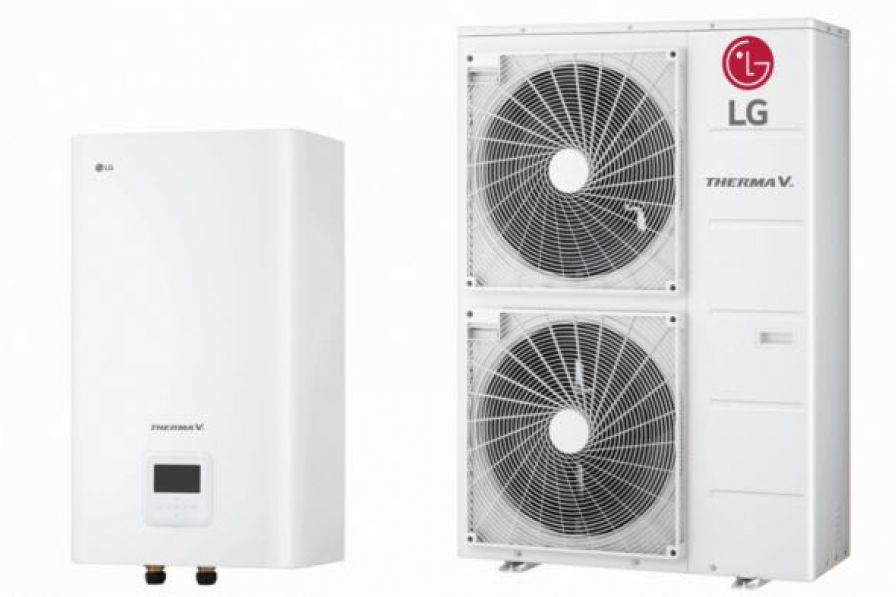

LG THERMA V HYDROSPLIT HU143MRB.U30 / HN1600MC.NK1

Производител: LG

Повик за цени

Operation Range (Leaving Water)	Heating	Min.~Max.	°C	15 ~ 65
	Cooling	Min.~Max.	°C	5 ~ 27
	Domestic Hot Water	Min.~Max.	°C	15 ~ 80
Water Flow Rate		Min.	ℓ/min	15
Water Flow Rate		Rated 2) (12 / 14 / 16kW)	ℓ/min	34.5 / 40.3 / 46.0
Flow Sensor	Measuring Range	Min. ~ Max.	ℓ/min	5 ~ 80
Water Pressure Sensor	Measuring Range	Min. ~ Max.	bar(G)	0 ~ 20
Expansion Vessel	Volume		ℓ	8
Safety Valve	Pressure Limit	Upper limit	bar	3
Piping Connections	Water Circuit	Inlet	mm (inch)	Male PT 25.4(1)
Piping Connections	Water Circuit	Outlet	mm (inch)	Male PT 25.4(1)
Wiring Connections	Power and Communication Cable (Included Earth, H07RN-F)		mm2 x cores	0.75 x 4
Sound Power Level	Heating	Rated	dB(A)	44
Dimensions	Unit	W × H × D	mm	490 × 850 × 315
Weight	Unit		kg	30,3

OAT			Indoor Unit		HU121MRB U30 (1Ø) HU123MRB U30 (3Ø)	HN1600MB NK0 HU141MRB U30 (1Ø) HU143MRB U30 (3Ø)	HU161MRB U30 (1Ø) HU163MRB U30 (3Ø)
OAT			Outdoor Unit		HU121MRB U30 (1Ø) HU123MRB U30 (3Ø)	HN1600MB NK0 HU141MRB U30 (1Ø) HU143MRB U30 (3Ø)	HU161MRB U30 (1Ø) HU163MRB U30 (3Ø)
Nominal Capacity	Heating	7 °C	35 °C	kW	12	14	16
		7 °C	55 °C	kW	11	11,5	12
		2 °C	35 °C	kW	11	12	13,8
	Cooling	35 °C	18 °C	kW	12	14	16
	Cooling	35 °C	7 °C	kW	12	14	16
Nominal Power Input	Heating	7 °C	55 °C	kW	3,79	4,04	4,29
	Heating	2 °C	35 °C	kW	3,01	3,31	3,83
	Cooling	35 °C	18 °C	kW	2,53	3,26	4
	Cooling	35 °C	7 °C	kW	4,44	5,38	6,4
COP	Heating	7 °C	35 °C	W/W	5,04	4,89	4,8
		7 °C	55 °C	W/W	2,9	2,85	2,8
		2 °C	35 °C	W/W	3,65	3,63	3,6
EER	Cooling	35 °C	18 °C	W/W	4,75	4,3	4
EER	Cooling	35 °C	7 °C	W/W	2,7	2,6	2,5
Operation Range	Heating	Min. ~ Max.		°C DB	-25 ~ 35
(Outdoor Temperature)	Cooling	Min. ~ Max.		°C DB	5 ~ 48
Refrigerant	Type			-	R32
	GWP (Global Warming Potential)			-	675
	Factory Charge			g	2 100
	Factory Charge			t-CO2 eq.	1,418
Compressor	Type			-	Hermetic Sealed Scroll
Dimensions	Unit	W x H x D		mm	950 × 1,380 × 330
Weight	Unit			kg	91,7
Sound Power Level	Heating	Rated		dB(A)	61	62	63
Sound Pressure Level (at 1m)	Heating	Rated		dB(A)	53	54	55
Power Supply	Voltage, Phase, Frequency			V, Ø, Hz	220-240, 1, 50 / 380-415, 3, 50
	Maximum Running Current			A	1Ø : 33.0, 3Ø : 12.0	1Ø : 34.0, 3Ø : 12.5	1Ø : 35.0, 3Ø : 13.0
	Recommended Circuit Breaker			A	1Ø : 40, 3Ø : 16
Wiring Connections	Power Supply Cable (Included Earth, H07RN-F)			mm2 x cores	1Ø : 6.0 x 3, 3Ø : 2.5 x 5
