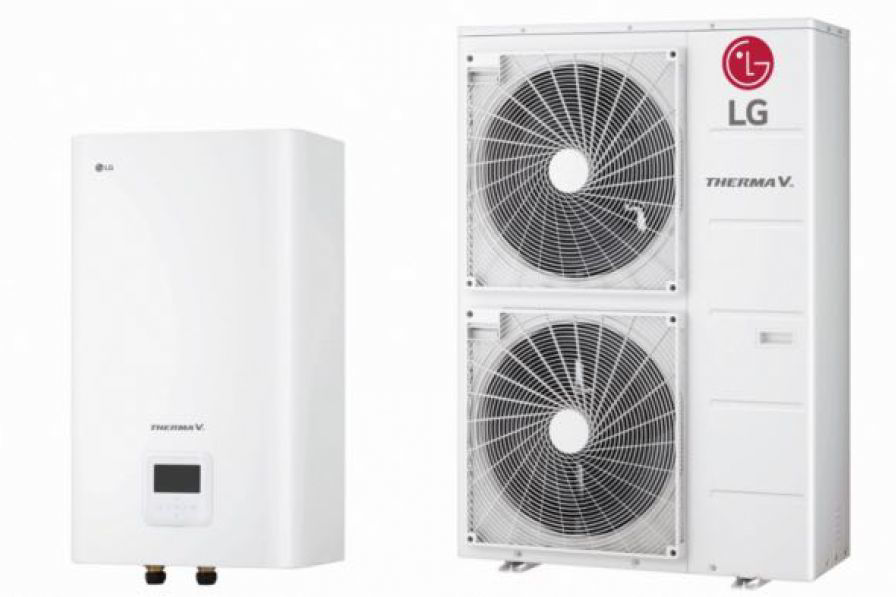

    LG THERMA V HYDROSPLIT HU161MRB.U30 / HN1600MC.NK1

    Производител: LG

    Повик за цени
    Operation Range (Leaving Water)HeatingMin.~Max.°C15 ~ 65
    CoolingMin.~Max.°C5 ~ 27
    Domestic Hot WaterMin.~Max.°C15 ~ 80
    Water Flow RateMin.ℓ/min15
    Rated 2) (12 / 14 / 16kW)ℓ/min34.5 / 40.3 / 46.0
    Flow SensorMeasuring RangeMin. ~ Max.ℓ/min5 ~ 80
    Water Pressure SensorMeasuring RangeMin. ~ Max.bar(G)0 ~ 20
    Expansion VesselVolume8
    Safety ValvePressure LimitUpper limitbar3
    Piping ConnectionsWater CircuitInletmm (inch)Male PT 25.4(1)
    Outletmm (inch)Male PT 25.4(1)
    Wiring ConnectionsPower and Communication Cable (Included Earth, H07RN-F)mm2 x cores0.75 x 4
    Sound Power LevelHeatingRateddB(A)44
    DimensionsUnitW × H × Dmm490 × 850 × 315
    WeightUnitkg30,3

    OATIndoor UnitHU121MRB U30 (1Ø) HU123MRB U30 (3Ø)HN1600MB NK0 HU141MRB U30 (1Ø) HU143MRB U30 (3Ø)HU161MRB U30 (1Ø) HU163MRB U30 (3Ø)
    Outdoor Unit
    Nominal CapacityHeating7 °C35 °CkW121416
    7 °C55 °CkW1111,512
    2 °C35 °CkW111213,8
    Cooling35 °C18 °CkW121416
    35 °C7 °CkW121416
    Nominal Power InputHeating7 °C55 °CkW3,794,044,29
    2 °C35 °CkW3,013,313,83
    Cooling35 °C18 °CkW2,533,264
    35 °C7 °CkW4,445,386,4
    COPHeating7 °C35 °CW/W5,044,894,8
    7 °C55 °CW/W2,92,852,8
    2 °C35 °CW/W3,653,633,6
    EERCooling35 °C18 °CW/W4,754,34
    35 °C7 °CW/W2,72,62,5
    Operation RangeHeatingMin. ~ Max.°C DB-25 ~ 35
    (Outdoor Temperature)CoolingMin. ~ Max.°C DB5 ~ 48
    RefrigerantType-R32
    GWP (Global Warming Potential)-675
    Factory Chargeg2 100
    t-CO2 eq.1,418
    CompressorType-Hermetic Sealed Scroll
    DimensionsUnitW x H x Dmm950 × 1,380 × 330
    WeightUnitkg91,7
    Sound Power LevelHeatingRateddB(A)616263
    Sound Pressure Level (at 1m)HeatingRateddB(A)535455
    Power SupplyVoltage, Phase, FrequencyV, Ø, Hz220-240, 1, 50 / 380-415, 3, 50
    Maximum Running CurrentA1Ø : 33.0, 3Ø : 12.01Ø : 34.0, 3Ø : 12.51Ø : 35.0, 3Ø : 13.0
    Recommended Circuit BreakerA1Ø : 40, 3Ø : 16
    Wiring ConnectionsPower Supply Cable (Included Earth, H07RN-F)mm2 x cores1Ø : 6.0 x 3, 3Ø : 2.5 x 5

    Catalogue

    PDB R32 Heat pump
